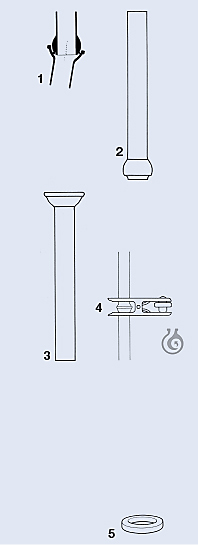

1 Rotulex System

This flexible connection (patented by Sovirel) consists of 2 semi-spherical mating pieces which are held together by means of tongs or flanges. Between the connections is an elastic and inert silicone rubber seal with PTFE coating, or a Viton seal.



Technical data:

Operating temperature:

max. 200 to 250°C

Pressure resistance:

0.5 to 6 bar, according to size and accessory (tongs or flanges)

Dynam. vacuum strength:

10-4 Torr with composite seal,
10-2 Torr with Viton seal


2 Connical mating pieces (without sealing ring)
Type RotulexBall outer Ø
mm		Tubing I.D.
mm		Tubing O.D.
mm		Overall L
mm		Order No.
13/513 5 815013 20 69152
19/919 91215013 20 69153
29/1529151815013 20 69154
35/2035202415013 20 69155
41/2541252815013 20 69156


3 Spherical mating pieces
Type RotulexBall outer Ø
mm		Tubing I.D.
mm		Tubing O.D.
mm		Overall L
mm		Order No.
13/513 5 815013 20 69205
19/919 91215013 20 69209
29/1529151815013 20 69215
35/2035202415013 20 69220
41/2541252815013 20 69225


Clamps

To hold the mating pieces together you can use either articulated tongs with spring and a locking pin, or a separable pair of flanges.

4 Articulated tongs with spring

Made completely of rust-proof steel 18 × 8. Packed one to a plastic bag.

Type RotulexOrder No.
13/513 20 69022
19/913 20 69023
29/1513 20 69024
35/2013 20 69025
41/2513 20 69026


5 Flange brackets
Type RotulexMaterialOrder No.
13/5Silicone rubber and PTFE13 20 69002
19/9Silicone rubber and PTFE13 20 69003
29/15Silicone rubber and PTFE13 20 69004
35/20Silicone rubber and PTFE13 20 69005
41/25Silicone rubber and PTFE13 20 69006
13/5Viton13 20 69012
19/9Viton13 20 69013
29/15Viton13 20 69014
35/20Viton13 20 69015
41/25Viton13 20 69016
