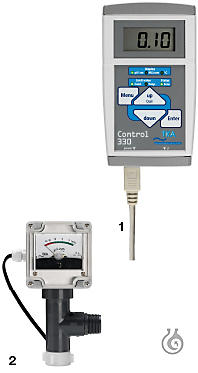

High-precision conductivity meter especially for monitoring of conductivity and temperature of ultra-pure water. Equipped with 3½ digit measurement display of the conductivity in µS/cm and temperature in °C, automatic temperature compensation, limit value setting for conductivity and temperature with acoustic and visual signal after exceeding of limit value, as well as optional RS 232 interface.
Technical data: |
Measurement range conductivity: | 0.055 to 199.9 µS/cm |
Measurement range temperature: | 0.1 to 99.9°C |
Limit value setting Cond.: | 0.055 to 30 µS/cm continuously adjustable |
Limit value setting TP: | 10 to 40°C continuously adjustable |
Signals in case of limit value exceeding: | green/red switch of LED + buzzer |
Electr. connection: | 110/230 V / 50-60 Hz |
RS 232: | optional (version with potential-free contact and magnetic valve) |
Connection: | R ¾" (all devices also available with quick-release fastener) |
Dimensions (W×D×H): | 75 × 30 × 130 mm |
Safe display unit for monitoring ultra-pure water. Simple mounting on an ion-exchanger cartridge.
