Properties:

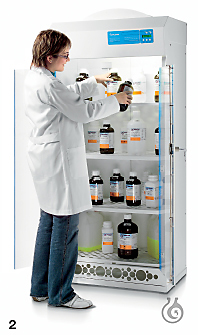

Vented cupboards with filter for storing chemical products. The cupboards enable storing reactive liquids, because a special active coal filter removes flammable, acidly and toxic vapours by means of adsorption. The following national and international safety standards are adhered to - depending on standard, either completely or partially: AFNOR NF X 15-211 (class II), BS 7258, CSAZ 316.5, EN-1822, EN-141, UNE EN ISO 9001-2000.
Applications:
Storing of chemicals in accordance with the incompatibility standards.
Filter:
- Type A: for organic compounds such as ketones, alcohols, ether, organic acids, aromatic and halogen hydrocarbon, xylene etc.
- Type BE: for inorganic acids and volatile sulphur compounds such as H2SO 4, HCl, HNO3, H2S, SO3, NO2, Cl2 etc.
- Type F: for formol, formaldehyde, ethanal as well as derivates
- Type K: for inorganic vapours such as amine, acidly vapours and ammonia (NH3)
Technical features:
- Safety lock
- Illumination
- Extractable drip pan for liquids
- Liquid-absorbing mat
- Alarm in case of fan failure
- System to check the saturation degree of the filter
- 2 or 4 shelves (depending on model)
- 3 year warranty
Tecnical data: | Type 2005 G | Type 2010 G |
Average volume of air treated (m3/h): | 160 | 160 |
Average face velocity (m/s): | 0,67 | 0,67 |
Internal hood volume (m3): | 0,224 | 0,567 |
Storage capacity (liters): | 40* | 100* |
Average air renewals per min.: | 11 | 4,6 |
Total electrical power consumption (W): | 95 | 95 |
Voltage-frequency (V-Hz): | 220 V, 50 Hz | 220 V, 50 Hz |
Illumination: Philips PLL kit (W) | 36 | 36 |
Noise level (dB): | 48 | 48 |
Standard CE wiring and earth connection: | Ja | Ja |
Inner dimensions (L×D×H): | 465 × 795 × 605 mm | 465 × 795 × 1535 mm |
External dimensions (L×T×H): | 500 × 800 × 1050 mm | 500 × 800 × 1835 mm |
*max. 25 kg for each shelf | | |
