Flow-Through Cells, Hellma®

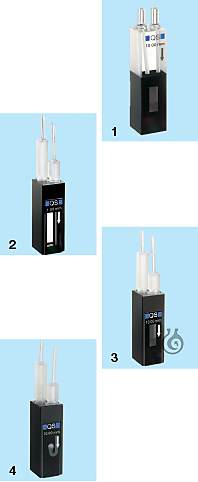

1 Flow-through cells, with inlet and outlet tubes, Type 176.000



Outer dimensions H × W × D:

38.5 or 45 × 12.5 × 12.5 mm

Aperture:

11 × 4 mm

Material:

quartz glass SUPRASIL® (200 – 2500 nm)


Layer thickness
mm		Volume
µl		CenterOrder No.
104501519 55 30102
10450 8.519 55 30832


2 Flow-through cells, compact with 2 screw connectors and FEP tubes, Type 170.000



Outer dimensions H × W × D:

35 × 12.5 × 12.5 mm

Aperture:

17.5 × 3.5 mm

Material:

quartz glass SUPRASIL® (200 – 2500 nm)


Layer thickness
mm		Volume
µl		Order No.
1 6219 55 22252
212419 55 22322


3 Flow-through cells, compact with 2 screw connectors and FEP tubes, Type 176.700



Outer dimensions H × W × D:

35 × 12.5 × 12.5 mm

Aperture:

11 × 3.5 mm

Material:

quartz glass SUPRASIL® (200 – 2500 nm)


Layer thickness
mm		Volume
µl		CenterOrder No.
103901519 55 15102
10390 8.519 55 15832


4 Flow-through cells, compact with 2 screw connectors and FEP tubes, Type 178.710



Outer dimensions H × W × D:

35 × 12.5 × 12.5 mm

Aperture:

3 mm Ø (specify center dimension)


Layer thickness
mm		Vol.
µl		CenterMaterialOrder No.
108015Optical special glass (320 – 2500 nm)10 55 11163
10808,5Optical special glass (320 – 2500 nm)19 55 21161
108015Quartz glass SUPRASIL® (200 – 2500 nm)10 55 11164
10808,5Quartz glass SUPRASIL® (200 – 2500 nm)19 55 21162
