High-performance Dispersing Instrument, IKA®

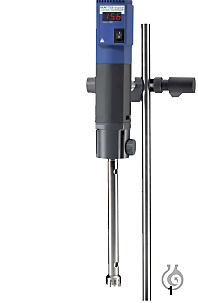

T 25 digital ULTRA-TURRAX®

Dispersing instrument for volumes of 1 ml to 2.000 ml (H2O).
The spectrum of applications ranges from homogenizing waste water samples to the use in laboratory reactors, to dispersion tasks under vacuum / pressure and sample preparation in medical diagnostics.

  • Three types of shaft bearings
  • Standard version with digital display
  • Rotor-Stator configurations have thirty years of proven, guaranteed comparability of test results



Technical data:

Motor rating input/output:

500/300 W

Volume range (H2O):

1 – 2.000 ml

Speed adjustment:

stepless

Speed range:

3.400 – 24.000 rpm

Speed display:

LED

Dimensions (W × H × D):

65 × 240 × 80 mm

Weight:

1.6 kg

Permissible ambient temperature:

5 – 40°C

Permissible relative humidity:

80%

Protection class acc. to DIN EN 60529:

IP 20


ArticleOrder No.
(1)T 25 digital ULTRA-TURRAX®10 36 03565


Dispersing elements for T 25 digital



Technical data:

Materials in contact with medium:

PTFE, AISI 316L

pH range:

2 – 13

Suitable for solvents:

yes

Suitable for abrasive substances:

yes

Max. temperature:

180°C


(2)(3)(4)(5)(6)
ArticleS 25 N - 8 GS 25 N - 10 GS 25 N - 18 GS 25 N - 25 GS 25 N - 25 FS 25 NK - 19 G
Working rangeml1 – 501 – 10010 – 150050 – 2000100 – 200025 – 1500
Ø statormm81018252519
Ø rotormm6.17.512.7171812.7
Gap between stator and rotormm0.250.350.30.50.50.3
Min./max. immersion depthmm27 / 8522 / 8540 / 16540 / 16540 / 16540 / 165
Installed lengthmm108105194194194194
Sterilization methodsall methodsall methodsall methodsall methodsall methodswet chemical
Ultimate fineness, suspensions10 – 5010 – 5010 – 5015 – 505 – 2510 – 50
Ultimate fineness, emulsions1 – 101 – 101 – 101 – 101 – 51 – 10
Order No.10 36 0593910 36 0594010 36 0594110 36 0594210 36 0594310 36 05944


Plastic dispersing elements for T 25 digital

Incl. 1 Disposable tube. Plastic materials used approved by FDA.



Technical data:

Materials in contact with medium:

Polycarbonat (PC), Polysulfon (PSU)

Max. temperature:

100°C

Sterilization methods:

autoclavable


(7)(8)
ArticleS 25 D - 10 G - KSS 25 D - 14 G - KS
Working rangeml10 – 10010 – 500
Ø statormm1014
Ø rotormm6.759.5
Min./max. immersion depthmm15 / 8515 / 85
Installed lengthmm150150
Order No.10 36 0452210 36 04521
PUpc/Pack1010
