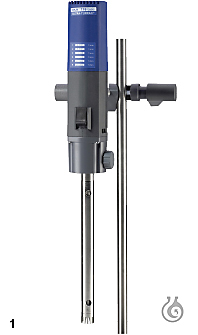

High-performance Dispersing Instrument, IKA®
T 18 basic ULTRA-TURRAX®

Dispersing instrument for volumes of 1 ml to 1.500 ml (H2O).
A wide speed range allows you to work at high circumferential speeds.

  • Electronic speed control
  • Electronic overload protection
  • Quick release button for dispersing element
  • With connection for in-line tachometer



Technical data:

Motor rating input/output:

500/300 W

Volume range (H2O):

1 – 1.500 ml

Speed adjustment:

stepless

Speed range:

3.500 – 24.000 rpm

Speed display:

scale

Dimensions (W × H × D):

65 × 240 × 80 mm

Weight:

1.6 kg

Permissible ambient temperature:

5 – 40°C

Permissible relative humidity:

80%

Protection class acc. to DIN EN 60529:

IP 20


ArticleOrder No.
(1)T 18 basic ULTRA-TURRAX®10 36 04641


Dispersing elements for T 18 basic



Technical data:

Materials in contact with medium:

PTFE, AISI 316L

pH range:

2 – 13

Suitable for solvents:

yes

Suitable for abrasive substances:

yes

Max. temperature:

180°C

Sterilization methods:

all methods

Ultimate fineness, suspensions:

10 – 50 μm

Ultimate fineness, emulsions:

1 – 10 μm


ArticleS 18 N - 10 GS 18 N - 19 G
Working rangeml1 – 10010 – 1500
Ø statormm1019
Ø rotormm7.512.7
Gap between stator and rotormm0.350.40
Min./max. immersion depthmm25/7035/170
Installed lengthmm108204
Order No.10 36 0463910 36 04640


Plastic dispersing elements for T 18 basic

Incl. 1 Disposable tube. Plastic materials used approved by FDA.



Technical data:

Materials in contact with medium:

Polycarbonat (PC), Polysulfon (PSU)

Max. temperature:

100°C

Sterilization methods:

autoclavable


(2)(3)
ArticleS 18 D - 10 G - KSS 18 D - 14 G - KS
Working rangeml10 – 10010 – 500
Ø statormm1014
Ø rotormm6.759.5
Min./max. immersion depthmm15 / 8515 / 85
Installed lengthmm150150
Order No.10 36 0464210 36 04643
PUpc/Pack1010
