Dispersing Instrument, IKA®

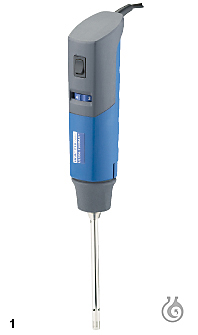

T 10 basic ULTRA-TURRAX®

Dispersing instrument for volumes of 0.5 to 100 ml.
A wide speed range allows you to work at high circumferential speeds even with small rotor diameters.

  • Maintains speed with various media due to high performance 125 Watt drive
  • Ideal for manual operation due to its light weight and ergonomic form
  • Extremely mobile due to direct line power (no transformer required)
  • Stainless steel dispersing elements (5 mm, 8 mm and 10 mm diameter) can be cleaned quickly and easily as they can be dismounted without tools
  • Plastic disposable dispersing elements in two sizes, particularly suitable for PCR analysis
  • Quick-release coupling makes changing the dispersing elements easy

Supplied with:

  • Clamp R 200
  • Empty storage case (for drive T 10, clamp, dispersing elementsand spare seals)



Technical data:

Motor rating input/output:

125/75 W

Volume range (H2O):

0.5 – 100 ml

Speed adjustment:

stepless

Speed range:

8.000 – 30.000 rpm

Speed display:

scale

Dimensions (W × H × D):

46 × 201 × 57 mm

Weight:

0.4 kg

Permissible ambient temperature:

5 – 40°C

Permissible relative humidity:

80%

Protection class acc. to DIN EN 60529:

IP 30


ArticleOrder No.
(1)T 10 basic ULTRA-TURRAX®10 36 03420


Dispersing elements for T 10 basic



Technical data:

Materials in contact with medium:

PTFE, AISI 316L

pH range:

2 – 13

Suitable for solvents:

yes

Suitable for abrasive substances:

yes

Max. temperature:

180°C

Sterilization methods:

all methods

Ultimate fineness, suspensions:

5 – 25 μm

Ultimate fineness, emulsions:

1 – 10 μm


(2)(3)(4)
ArticleS 10 N - 5 GS 10 N - 8 GS 10 N - 10 G
Working rangeml0.5 – 101 – 501 – 100
Ø statormm5810
Ø rotormm3.86.17.6
Gap between stator and rotormm0.10.250.2
Min./max. immersion depthmm20 / 7520 / 9520 / 100
Installed lengthmm92115115
Order No.10 36 0330410 36 0330510 36 03306


Plastic dispersing elements for T 10 basic

Plastic materials used approved by FDA.



Technical data:

Materials in contact with medium:

Polycarbonat (PC), Polysulfon (PSU)

Max. temperature:

100°C

Sterilization methods:

autoclavable


(5)(6)
ArticleS 10 D - 7 G - KS - 65S 10 D - 7 G - KS - 110
Working rangeml1 – 201 – 40
Ø statormm77
Ø rotormm4.84.8
Min./max. immersion depthmm20 / 5020 / 90
Installed lengthmm65110
Order No.10 36 0330710 36 03308
PUpc/Pack2525
