Magnetic Stirrers RCT Synthesis PACKAGE 1 and 2, IKA®



Technical data RCT Synthese PACKAGE 1 und 2:

Magnetic stirrer:

Stirring quantity max. (H2O):

20 l

Motor rating input/output:

16/9 W

Speed display:

LED

Speed range:

50 to 1.500 min-1

Heating function:

Heat output:

600 W

Heating rate (1 l H2O):

6.5 K/min

Temperature range:

RT – 310°C

Adjusting accuracy of heat temperature:

±1 K

Adjustable safety circuit min./max.:

50/360°C

Control accuracy with sensor:

±1 K

Heating plate:

Material:

Al alloy

Dimensions:

Ø 135 mm

General data:

Dimensions (W × H × D):

160 × 85 × 270 mm

Weight:

2.5 kg

Permissible ambient data:

5 to 40°C

Permissible relative humidity:

80%

Protection class acc. to DIN EN 60529:

IP 42

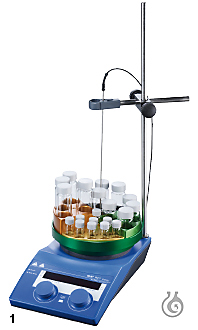

Magnetic Stirrers RCT Synthesis PACKAGE 1

The carrier plate can be fitted with four identical or differing aluminium quarters, allowing up to 36 reaction vessels to be processed at the same time. The aluminium quarters guarantee optimal heat transfer throughout the process with no interference to the magnetic field. This ensures that all the containers are processed at the same temperature and that the contents are uniformly mixed. The different colours used for the various quarters makes them easier to distinguish.

  • Multiple syntheses with only one magnetic stirrer
  • Uniform mixing in every vessel
  • High-precision thermal conduction directly into the quarters
  • Same temperature in all vessels
  • Wide range of applications thanks to exchangeable quarters
  • Safe and clean working

RCT Synthese Package 1 consists of:

  • RCT basic safety control
  • H 135.3 Carrier plate
  • 4 × quarters (4 ml, 20 ml, 30 ml, 40 ml)
  • H 16 V Support rod
  • H 44 Boss head clamp
  • H 38 Holding rod
ArticleOrder No.
(1)RCT Synthesis PACKAGE 110 36 08251

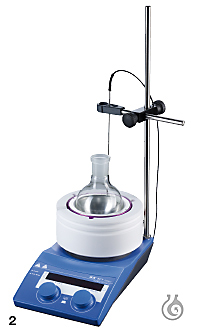

Magnetic stirrer RCT Synthesis PACKAGE 2

The reaction block allows syntheses to be carried out in round flasks at temperatures of up to 180°C. This system ensures optimal heat transfer from the heating plate directly into the medium. Uniform mixing is also guaranteed because there is no interference to the magnetic field from the aluminium blocks. The PTFE coating prevents burning and ensures that working with the system is safe. Reaction blocks are available in three standard sizes. These can be adapted to various flask sizes using the appropriate inserts.

  • Syntheses in round flasks at up to 180°C
  • Uniform mixing
  • High-precision thermal conduction directly into the reaction block
  • PTFE coating protects against burning
  • Wide range of applications thanks to exchangeable inserts
  • Safe and clean working

RCT Synthese Package 2 consists of:

  • RCT basic safety control
  • H 135.5 Reaction block, 500 ml
  • H 135.511 Insert, 250 ml
  • H 16 V Support rod
  • H 44 Boss head clamp
  • H 38 Holding rod
ArticleOrder No.
(2)RCT Synthesis PACKAGE 210 36 08252
