General features of LR 20 models

• A guard hood consisting of a mental frame and safety glass covers the bath completely while providing clear visible monitoring
• Features water level regulation system to prevent water from spilling over and potential floods in your lab
• Unique integrated evaporating flask support system allows for “one person operation” to remove the flask in just moments
• A temperature sensor powers off the bath in case of any uncontrolled heat-up event. In case of over pressure or glassware breakage the unit powers off entirely
• No hassle or safety concerns due to low fluid levels: self-filling water bath takes the worry out of running dry
• Automatic models allow for continuous unattended operation overnight and weekend applications to work off large quantities – great alternative to 50 or 100 l evaporator
• Receiver cassettes guard against glassware breakage while providing a self standing support
• Excellent user safety with high impact transparent PMMA door guard glassware and receiving cassettes

Heathing Bath

• For your convenience an outlet allows you to empty the bath safely and without spills or unnecessary mess
• Protect yourself reliably with safety models:
  A guard hood consisting of a mental frame and safety glass covers the bath completely. This prevents any operator contact with stream, splashing bath fluid and splinters or glass in case of an implosion
• Non-fogging safety glass provides clear visible monitoring of the process in your evaporation
• Prevent an overheating situation effectively: A temperature sensor powers off the bath in case of any uncontrolled heat-up event
• Features water level regulation system to prevent water from spilling over and potential floods in your lab
• No hassle or safety concerns due to low fluid levels: Self-filling water bath takes the worry out of running dry

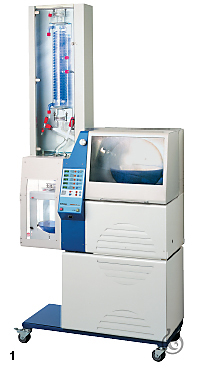

Laborota 20 safety – Highest safety and integrated vacuum control capabilities

• Excellent user safety with high impact transparent PMMA door
• Non-fogging ESG safety glass and metal frame guard hood provides excellent user protection
• Certification according to GMP available for this model: validation for Installation (IQ) and Operating Qualification (OQ)
• Water bath with temperatures up to 100°C and oil bath models with temperatures up to 180°C available
• Fully maneuverable optional base with removable panels for storage of vaccum pump, glassware, solvents or accessories
• Receiver cassettes and PMMA door guard against glassware breakage

Two programs for your process control

P(const): Program for solvent separations. This program holds a set vacuum constant and uses a hysteresis

T(auto): Supports very precise automatic pressure control for solvent evaporation and separations. It is able to identify multiple boiling points automatically by reducing vacuum by use of a vapor temperature T(auto) guides the vacuum control by adjusting valve reaction time to reflect the solvent vapor front collecting on the condenser to yield sustainable distillation. This unique program gives operator ease of use in optimizing the vacuum parameters.

Laborota 20 compact – For higher demands and integrated vacuum control

• This model features identical specifications as the LR 20 safety but for limited budget comes without these safety aspects:
  – Metal frame and safety glass guard hood covering the bath
  – High impact PMMA door covering the glassware assembly
  – High impact PMMa latching doors which cover the receiving flask cassettes
• Large control panel which includes separate bright displays for all process parameters, programmable ramps as described on page 9
• Optional fully maneuverable base which features detachable side panels
• Two bath configurations: water bath models with Temperatures up to 100°C and oil bath models with Temperatures up to 180°C available

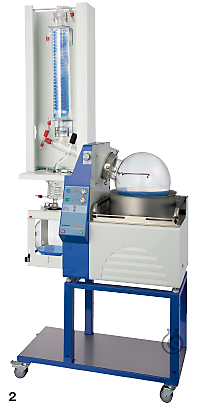

Labotora 20 eco – For standard distillations without vacuum control

• Operating panel for standard process parameters: Large, analog dial controls for speed and bath temperature. The digital display gives read out of speed and temperature
• Universal heating bath allows for both water and oil and reaches a temperature of 180°C
• Can be combined with an optional, fully maneuverable eco base unit without side panels

i = increasing cooler, ii = decreasing cooler + expansion vessel, iii = increasing + decreasing cooler + expansion vessel, iv = no. of retention pistons

Shorty glass set = total height shortened by 32 cm at constant distillation rates
K and KC glass set = Please note that, when using these glass sets, it is not possible to use the evaporator in T(auto) mode, because this glass set does not have a connection to the T(auto) sensor.

Oil bath configuration available upon request.
Please contact us if you would like to know more about technical details!

Large scale evaporator designed for unattended use. The required solvent is automatically refilled and condensate continuously drained off. The automatic water bath refill system along with an additional control panel for filling and electronics allow for use over an extended period of time.

• Designed for 24 h continuous use
• For unattended overnight and weekend applications
• Affordable alternative to common 50 and 100 liter evaporators
• Particularly suitable for solvent processing
• Reduces exposure to solvent vapour and spills

Oilbath version available on request.
Please contact us for more information.
